Ursus Alcor Aluminum Clincher MTB Wheelset

Tech

Alcor - ALLOY MTB WHEEL.

Ursus designed the Alcor wheels with precise specifications: rims in alloy Al 6069 WTB, 28 holes, straight pull spokes, Ursus hubs.

The mix of these components guarantees comfort, ease of use and thanks to the particular design of the rim profile it meets the needs of the most technical bikers.

The rim design has been optimized for mounting latest generation of wide tires: from a structural point of view, these contribute to improve the couple tubeless/clincher even at lower pressures, avoiding unwanted deformations when bending, braking and in traction phase.

Specifications

  • Hubs: Alloy hub Al 7075 on seal ball bearing high fluidity. XD31 front 28 holes, Thru axle 110x15 boost rear 28 holes, Thru Axle 148x12
  • Weight:  29” - Front 720 gr, rear 830 gr
  • Rim:  Made in Italy. KOM WTB69-AI6069.
  • Braking System: Disc International standard 6 holes braking system.

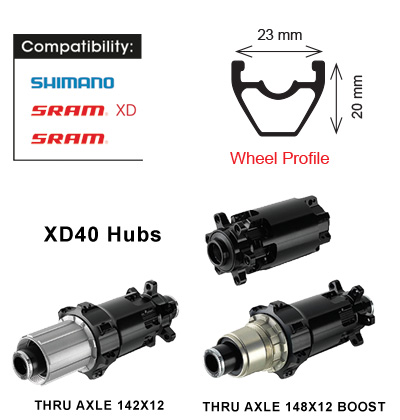

  • Profile:  Height 20 mm, Wide profile 23 mm.
  • Spokes:  CX-Ray SAPIM head bended spokes. Front: 28. Rear: 28.
  • Nipples:  External aluminum type with locking system.
  • Advised Tire: 29’’ - 24-622 ETRTO for clincher and tubeless
