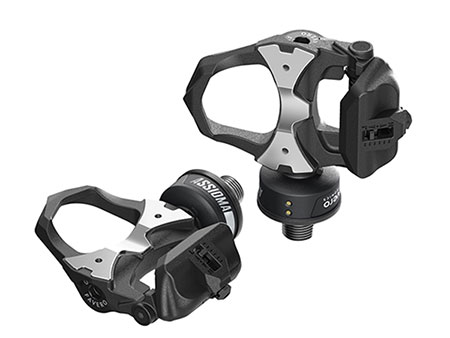

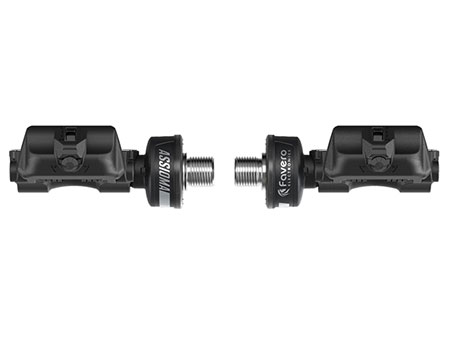

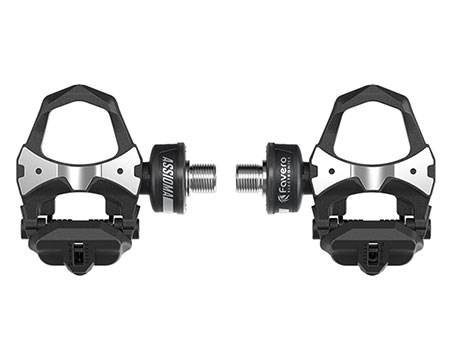

Favero Assioma DUO Cycling Power Meter


ASSIOMA DUO - Cycling power meter with sensors on both pedals. The best choice to take full advantage of the real dual-sided measurement.
Assioma DUO
Assioma DUO
Assioma DUO

Overview

Easy to install: Install and move your Assioma from one bike to another just like your normal pedals. You can do it easily and without extra tools or the need for a mechanic.

IAV Cycling Dynamics: Assioma provides advanced metrics called IAV Cycling Dynamics: IAV Power Phase and IAV Rider Position. These metrics, combined with the classic power data permit you to analyze in detail your pedaling technique and how your position on the bike influences performance.

IAV Power and gyroscope: Unlike others, the measurement of Assioma is not affected by errors related to very irregular pedaling (e.g. uphill sprints) or the use of oval chainrings. This is because Assioma can detect the actual instantaneous angular velocity during the whole pedal stroke, thus providing ±1% accuracy in any conditions. Not only in the lab.

Bluetooth SMART and ANT+: Assioma communicates with bike computers and smartphones (both Android and iOS) via Bluetooth and ANT+.

Real dual-sided power data: Assioma DUO measures power individually on both legs; this makes possible to observe with accuracy not only Total Power, but also L/R Balance, Torque Effectiveness (TE), Pedal Smoothness (PS), etc.

Accuracy and consistency: Assioma guarantees accurate and consistent data in all conditions on the road, and at any temperature ranging from -10°C and 60°C, thanks also to the ATC (Automatic Temperature Compensation).

Waterproof, resistant and light: The power sensors are protected by a bi-component resin block, extremely resistant to shocks, and completely waterproof.

Rechargeable and green: Assioma is the only pedal-based power meter for road with integrated rechargeable batteries; a single charge ensures 50 hours of use at least.

Tested and guaranteed: Favero Electronics produces every power meter in-house and tests each of them thoroughly to fully satisfy the standard required by current regulations.

User Manual

Specifications

  • Power sensors on both pedals
  • Dual-sided power measurement
  • Cadence sensor: included, inbuilt
  • Gyroscope: included, inbuilt
  • Power calculation system: IAV (Instantaneous Angular Velocity-based)
  • IAV Cycling Dynamics: yes
  • Oval-chainring compatible: yes
  • Total weight per pedal: 151,5 g (battery included)
  • Battery type: rechargeable lithium battery
  • Battery life: at least 50 hours
  • Radio communication: Bluetooth v4.0, ANT+ PWR profile (CT + PO)
  • Accuracy power measurement: ± 1%
  • Temperature compensation: -10°C / +60°C
  • Waterproofness rating: IP67
  • Q-factor: +54mm
  • Compatible cleats: Original LOOK Kéo and Favero cleats (red and black)
  • Bike type: road
  • Made in Italy
  • Warranty: 2 years

Package content

  • Left pedal with power sensor
  • Right pedal with power sensor
  • Battery charger including plugs (EU, US, UK, AU)
  • 2 two-meter long micro-USB/USB cables with 2 magnetic connectors
  • 2 red cleats 6°float (LOOK Kéo compatible)
  • Hex key and 4 washers for the installation
  • User manual
