Ursus Magnus H.02 Carbon Integrated Handlebar

Magnus H.02 Carbon Integrated Handlebar

Lightness, ergonomics, and aerodynamics find their perfect synthesis in Magnus H.02, a carbon handlebar with the full cable integration, in which each single detail is designed to make the experience of riding a road bike unforgettable.

Features:

  • Monolithic carbon composite
  • Total integration of cables of handlebars, stem and headsets
  • Compatible with bikes equipped with a 1 '' - 1/2 headset
  • Aerodynamic profile
  • Grip treatment for fixing brake levers
  • Special clamp
  • Integrated Cyclocomputer Bracket

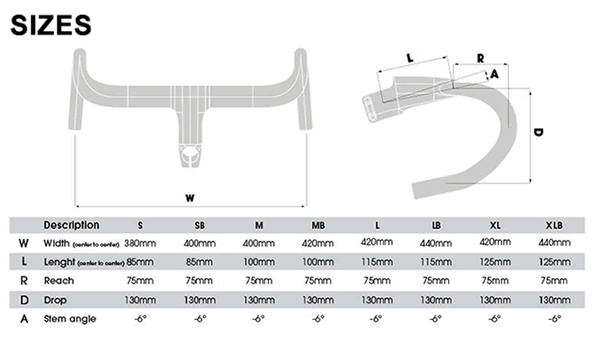

  • 8 sizes; S (380mm width) to XLB (440mm width)
  • Weight: 330 gr (M size)
  • UD Carbon black painted, grey matt finishing
Ursus Magnus H.02 Carbon Integrated Handlebar

Click link above for a video presentation

Aerodynamic

Aerodynamic

Ursus’s engineers has studied three different existing aerodynamic solutions in order to create a new unique shape: an aerodynamic fusion. Function meets ergonomics with a perfect ratio.

Ergonomic

Ergonomic

To find an ideal compromise between aerodynamics and ergonomics, the sections of the handlebars at the various support points are modeled differently, ensuring a more natural position of the wrists and elbows, as well as facilitating breathing.

Full Cable Integration

Full Cable Integration

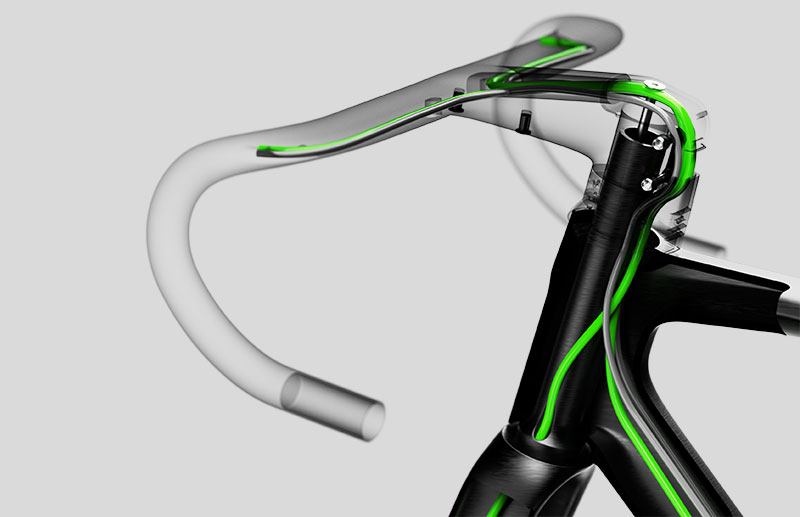

A modulated curve at the joint angle has been created in which the cables are completely protected, until they reach the 1”-1/2 steering bearing. The housing front brake can slide directly into the fork steerer with a special expander or follow the path of the other cables in a special housing located behind the head tube.

Geometry

Geometry

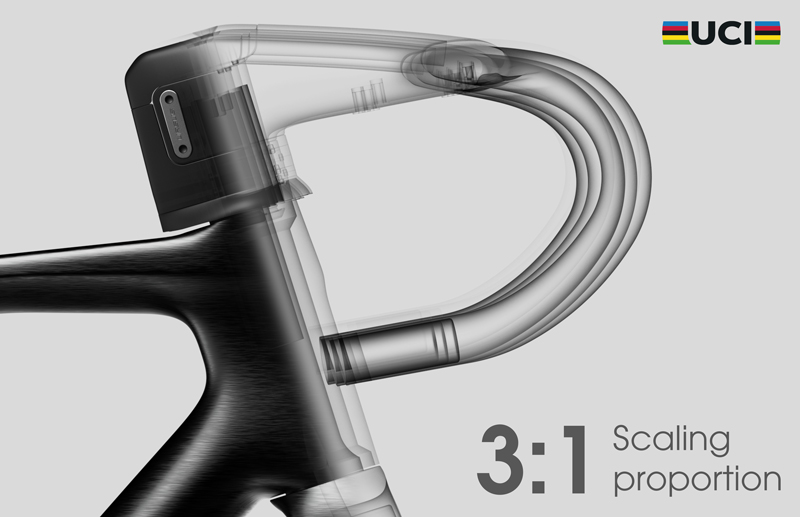

There are more geometric sections of the handlebar and stem, when the dimensions become bigger. To guarantee always the same rigidity and resistance. The proportion of sections is 3:1, the same requested by UCI certificate.

Integrated Clamp

Integrated Clamp

A replaceable aluminum plate has been integrated into the fixing area of the fold to the fork. The screws, therefore, are fixed onto the metal, thus avoiding the risk of damaging the carbon in the event of excessive tightening.

Cyclocomputer Bracket

Cyclocomputer Bracket

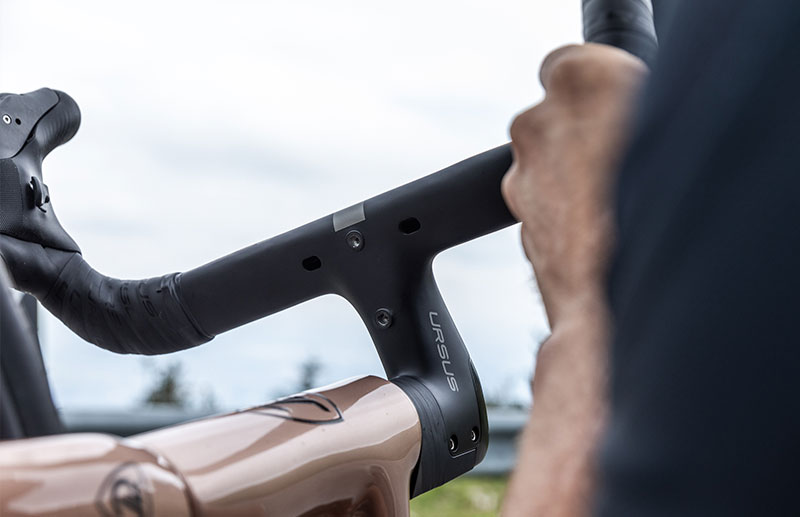

In the lower part of the attachment, there are two rivets for mounting the computer support in a position that perfectly latches onto the front contours of the handlebar.
