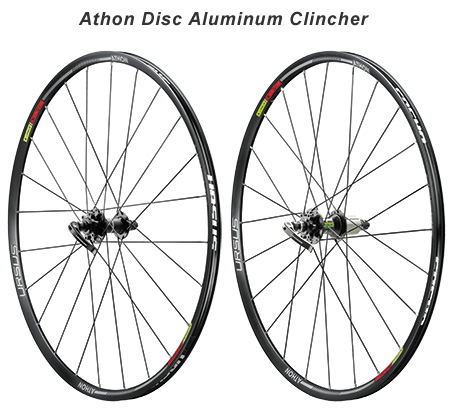

Athon Disc Aluminum Clincher

Tech

Athon Disc

Athon DISC are the perfect synthesis of the fundamental characteristics for an aluminium racing wheel: lightness, reactivity, safety and quality make it unique. Used for training by the professional teams that have chosen Ursus, they have distinguished themselves for reliability in racing on rough roads like the “Strade Bianche”. A 24 mm low-profile aluminum rim, combined with the pair of CNC-machined Ursus sliding hubs, makes Athon extremely comfortable, super-soft on rough bumps, light uphill and responsive at the same time.

More Info: The anodized black braking surface is an aesthetic finish and it will change colour during use.

Included: Flap 16/622, 2 quick releases, User guide

Specifications

  • Hubs:  Alloy hub Al 7075 on SKF seal ball bearing high fluidity.
    XD30 FRONT - 24 holes, THRU AXLE 100x15, QR 100X9. XD30 REAR - 24 holes, THRU AXLE 142X12, QR 135X10.
  • Weight:  Front 765 gr, rear 915 gr.
  • Rim:  Made in Italy. 28’’ - 622X14C clincher.  Clincher rim in alloy 6005 T6 anodized black.
  • Braking System: Disc International standard 6 holes braking system.

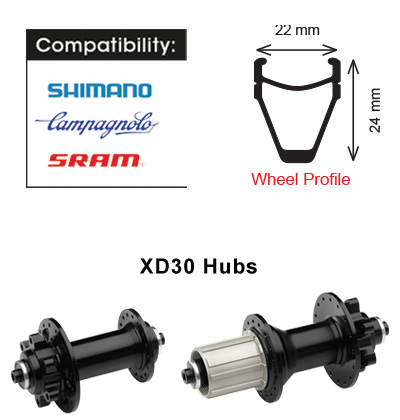

  • Profile:  Height 24 mm, Wide profile 22 mm.
  • Spokes: Straight pull black.  Front: 24. Rear: 24.
  • Nipples:  External brass type with locking system.
  • Quick Releases:  Quick release WB63 only for 100X9 / 135X10
  • Advised Tire: 28’’ - 19-622 ETRTO for clincher
